P6 · Parallelizing K-means

1. Prepare the data and measure serial runtime

The starter generates 1,000,000 points, 100 dimensions, and 3 clusters. The original serial implementation takes 5813.935 ms (median of three runs).

2. Inspect the clustering

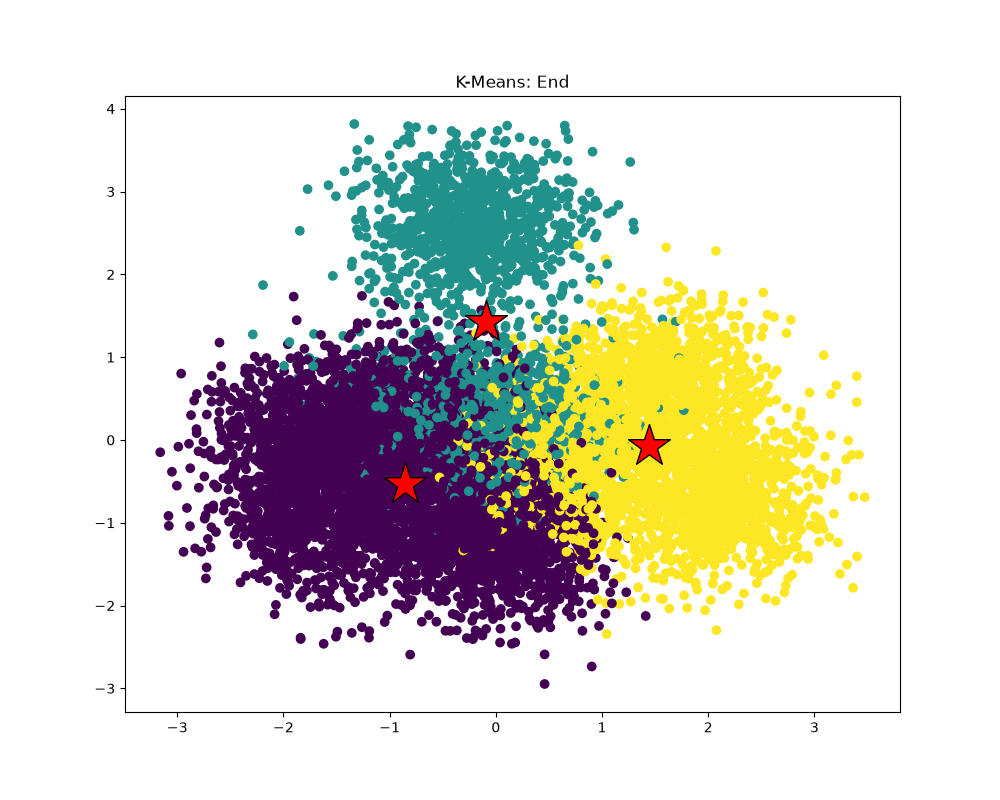

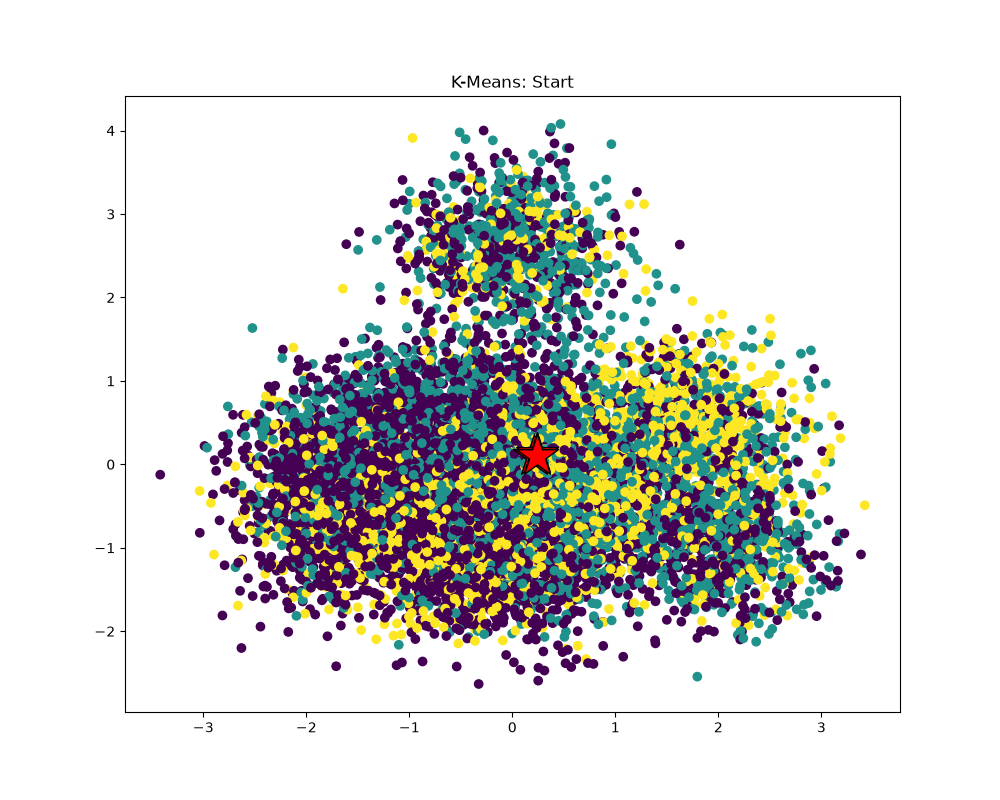

Local data projected to two dimensions by PCA. Colors show assignments; red stars mark centroids.

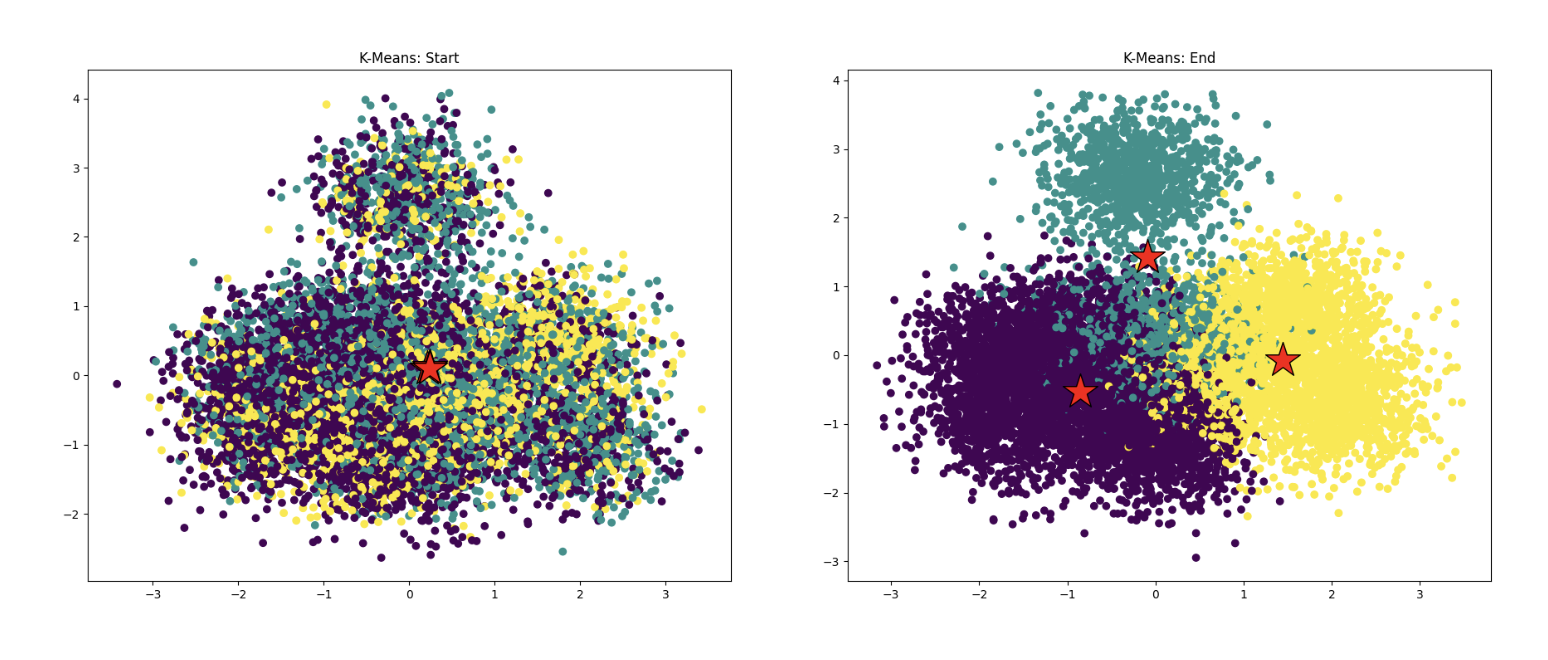

Handout example (2-D data)

3. Locate the performance bottleneck

Phase times across 24 serial iterations:

Phase	Time (ms)
Assignment	3751.303
Centroid update	921.564
Cost	1157.595

computeAssignments accounts for 64% of the phase time. Here M is the number of points, N the dimensions per point, and K the number of clusters. Comparing every point with every centroid takes O(M × K × N) work per iteration.

Each point's assignment can be computed independently from the current centroids. With one million points and only three centroids, dividing the points gives many independent units of work and lets each worker finish a complete nearest-centroid search.

4. Parallelize the assignment phase

workerThreadStart in kmeansThread.cpp:

void workerThreadStart(WorkerArgs * const args, double *minDist) {
    for (int m = args->threadId * args->M;
         m < (args->threadId+1) * args->M; m++) {
        for (int k = args->start; k < args->end; k++) {
            double d = dist(&args->data[m * args->N],
                            &args->clusterCentroids[k * args->N],
                            args->N);
            if (d < minDist[m]) {
                minDist[m] = d;
                args->clusterAssignments[m] = k;
            }
        }
    }
}

4.1 Follow one worker's assignment search

Each worker's args->M is its chunk size: 31,250 points with 32 workers. Worker t processes point indices [t * 31250, (t + 1) * 31250). The pointer still addresses the complete data array, so m is a global point index.

Each point occupies N consecutive doubles: &data[m * N] and &clusterCentroids[k * N] locate point m and centroid k. dist computes their Euclidean distance.

The inner loop scans all K centroids, retaining the shortest distance in minDist[m] and its centroid index in clusterAssignments[m].

All workers read the same data and centroids, which stay fixed during assignment. Each worker writes only its own range of minDist and clusterAssignments, so these writes need no locks. Equal-sized chunks require the point count to be divisible by 32.

4.2 Start the workers and wait for completion

void computeAssignments(WorkerArgs *const workerArgs) {
    static constexpr int MAX_THREADS = 32;
    double *minDist = new double[workerArgs->M];

    for (int m=0; m<workerArgs->M; m++) {
        minDist[m] = 1e30;
        workerArgs->clusterAssignments[m] = -1;
    }

    std::thread workers[MAX_THREADS];
    WorkerArgs args[MAX_THREADS];

    for (int i=0; i<MAX_THREADS; i++) {
        args[i].data = workerArgs->data;
        args[i].clusterCentroids = workerArgs->clusterCentroids;
        args[i].clusterAssignments = workerArgs->clusterAssignments;
        args[i].M = workerArgs->M / MAX_THREADS;
        args[i].K = workerArgs->K;
        args[i].N = workerArgs->N;
        args[i].start = workerArgs->start;
        args[i].end = workerArgs->end;
        args[i].threadId = i;
    }

    for (int i=1; i<MAX_THREADS; i++) {
        workers[i] = std::thread(workerThreadStart, &args[i], minDist);
    }

    workerThreadStart(&args[0], minDist);

    for (int i=1; i<MAX_THREADS; i++) {
        workers[i].join();
    }

    delete[] minDist;
}

workerArgs->M is the total point count; args[i].M is the per-worker chunk size. Distances and assignments are reset each iteration because the centroids have moved.

The caller launches workers 1–31, then runs worker 0. All workers must finish before minDist is freed and the centroid update reads their assignments:

Initialize minDist and assignments
                  |
     +------------+-------------+
     v            v             v
 worker 0     worker 1  ...  worker 31
 own points   own points     own points
     |            |             |
     +------------+-------------+
                  | all workers finish
                  v
          Update centroids
                  |
             Compute cost
                  |
          Test convergence
            /          \
          Done      Next iteration

The measured speedup includes the change from centroid-first to point-first loop order as well as threading.

4.3 Verify and measure

Version	Median time (3 runs)
Original serial	5813.935 ms
Parallel version	2544.944 ms

Overall speedup is 2.28×. Final assignments and centroids match the serial result exactly.

Assignment time drops from 3751.303 ms to 406.651 ms (9.22×). Centroid update and cost calculation remain serial and take about two seconds, limiting the overall speedup.

Complete-run measurements
